Dahtone Racing V2 RB26 6 throttle drive by wire system

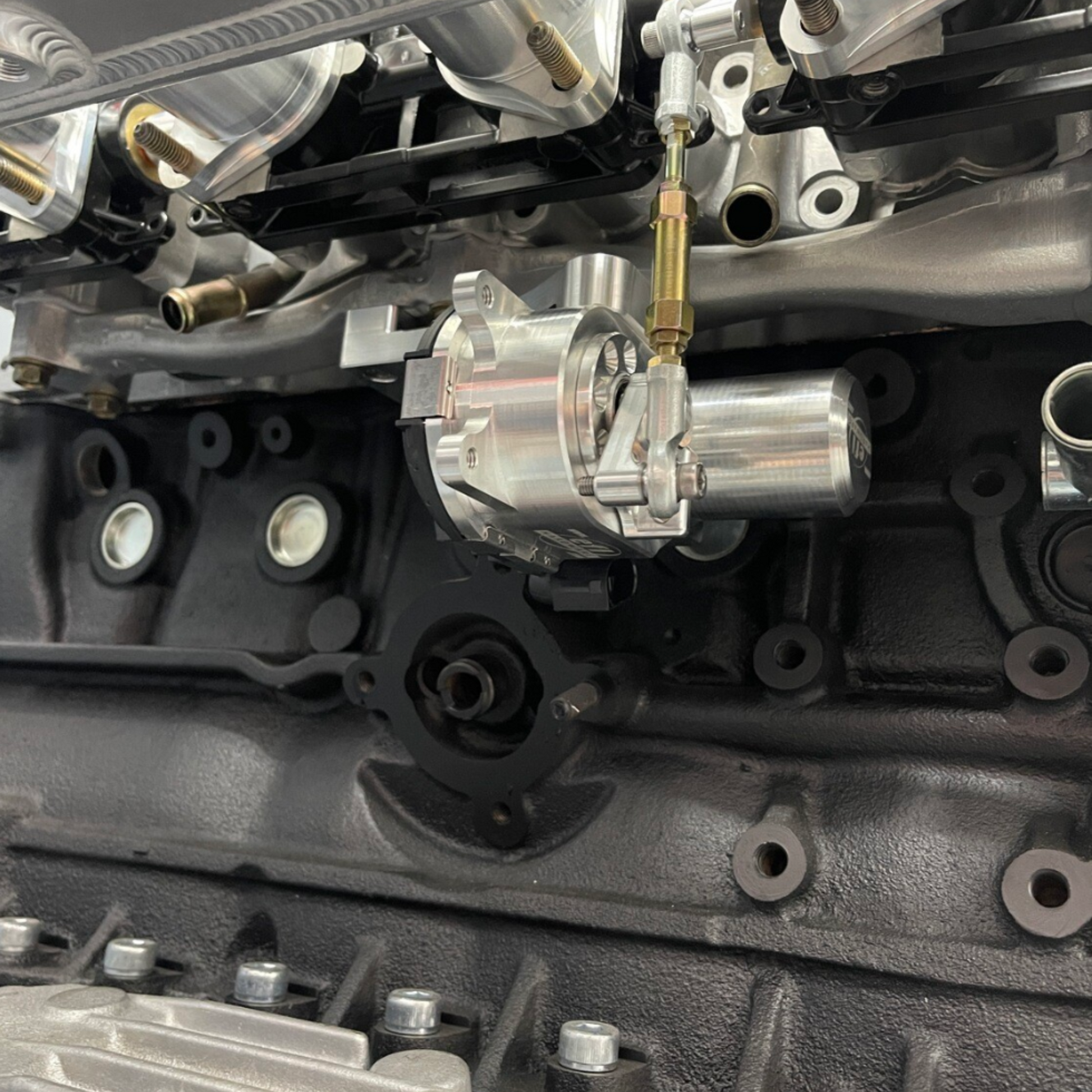

The V2 system now uses a Bosch based billet aluminium throttle actuator that has built-in throttle position sensors.
There is no need for any extra sensors, brackets, wires or connectors, everything functions just like a Bosch single throttle body would. TPS tracking is perfect, and the maximum current draw is under 4 amps, which means there is no need for any external control boxes or half-bridge modules.

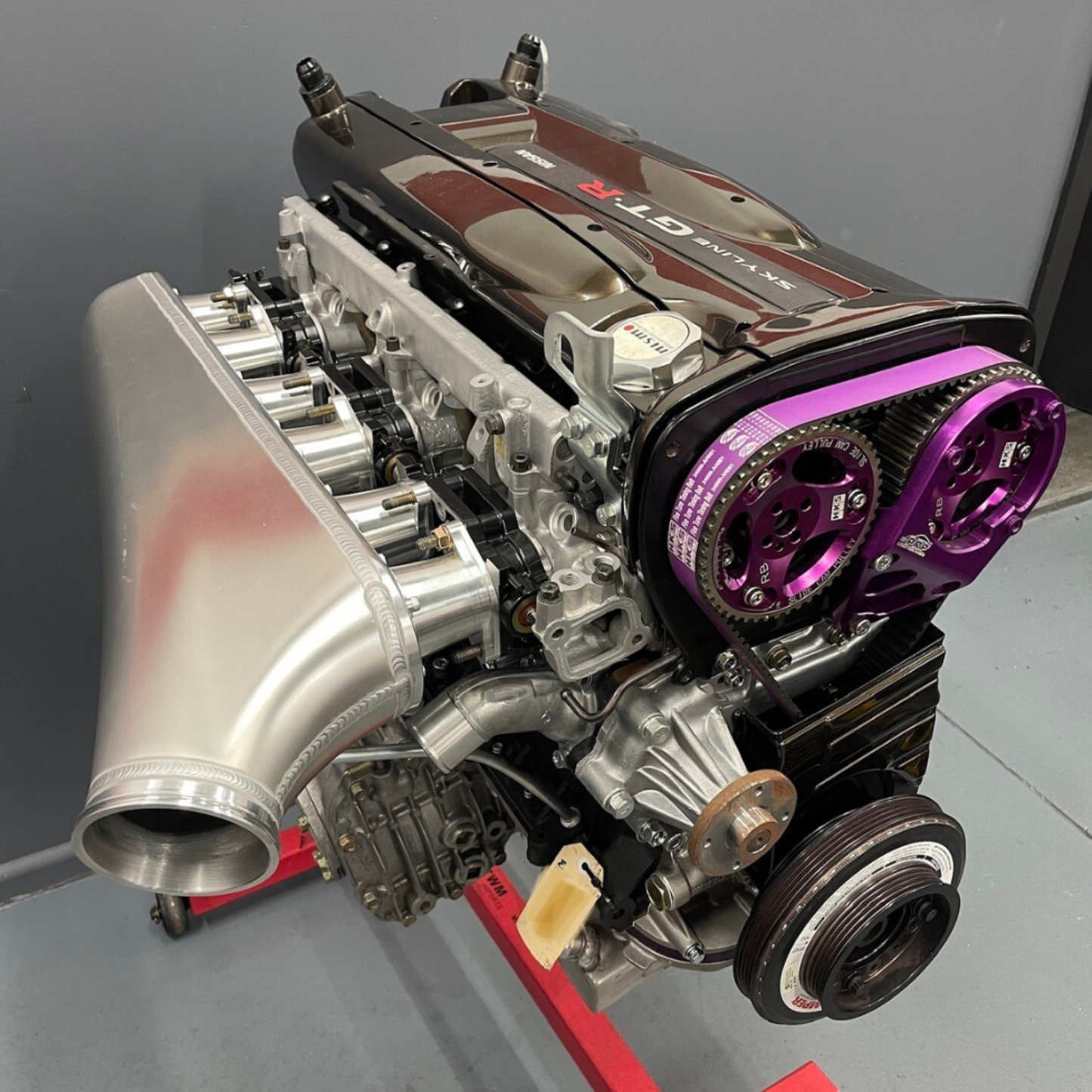

It will work on any ECU that can run a Bosch drive-by-wire throttle body. The system works with any 6 throttle inlet manifold (OEM, Nismo, Plazmaman, Hypertune or even naturally aspirated with velocity stacks) without the need for any additional parts. It also fits with the OEM oil cooler/filter block assembly.

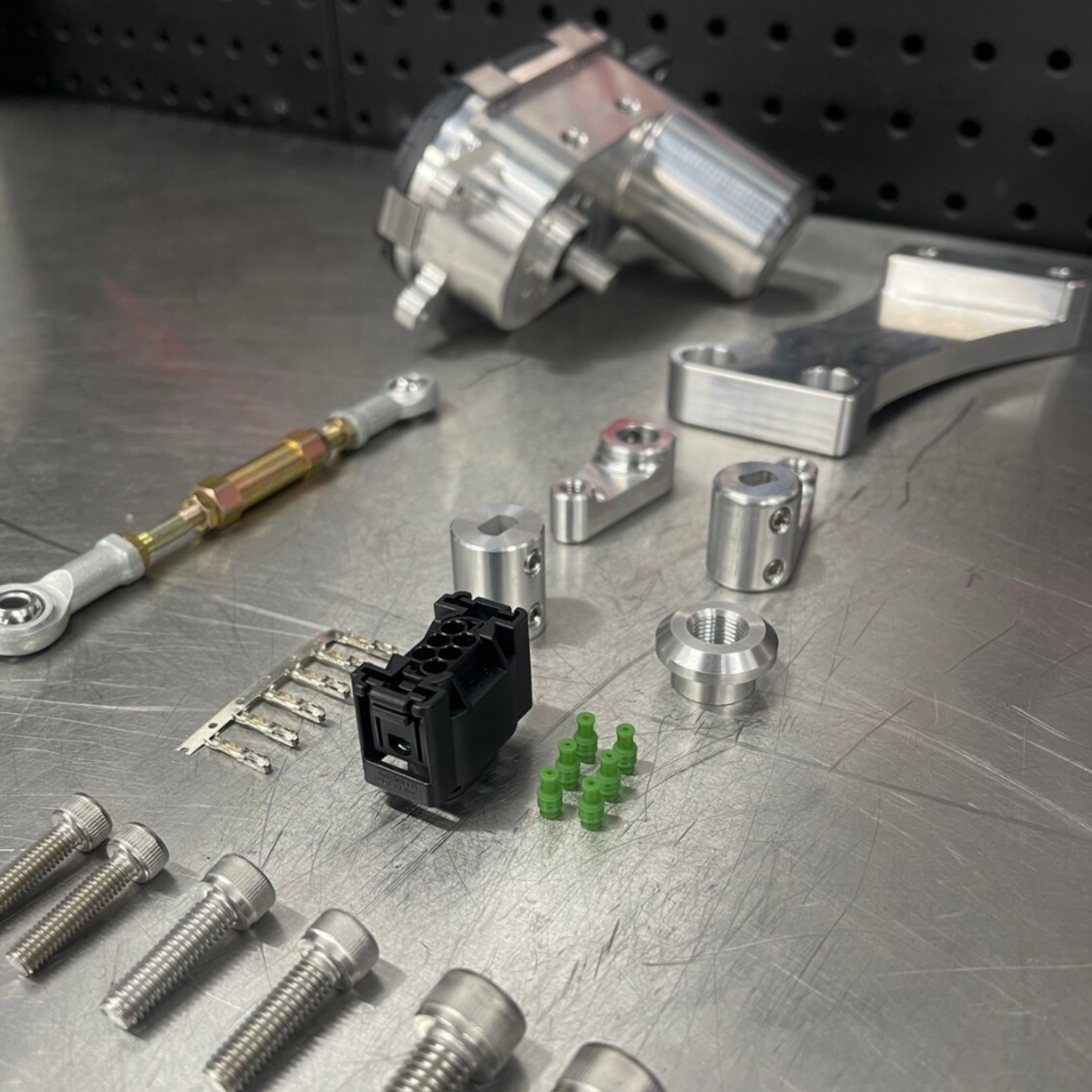

Parts Included

• 1 x Bosch based billet aluminium drive by wire actuator
• 1 x New Genuine Nissan throttle linkage
• 1 x Throttle shaft joiner
• 1 x Throttle shaft joiner with integrated linkage arm
• 1 x Throttle actuator arm
• 1 x Throttle actuator plug and pin kit
• 1 x Throttle actuator bracket
• 2 x weld in bungs ( 1/8 npt and 1/4 npt)
• Stainless fasteners
• Install guide is downloadable at the link below. (updated 05/06/2022)

https://drive.google.com/file/d/1bybn0e9KCGP83UAXhV-Q_ZI6SDBtzsZF/view?usp=drive_link
